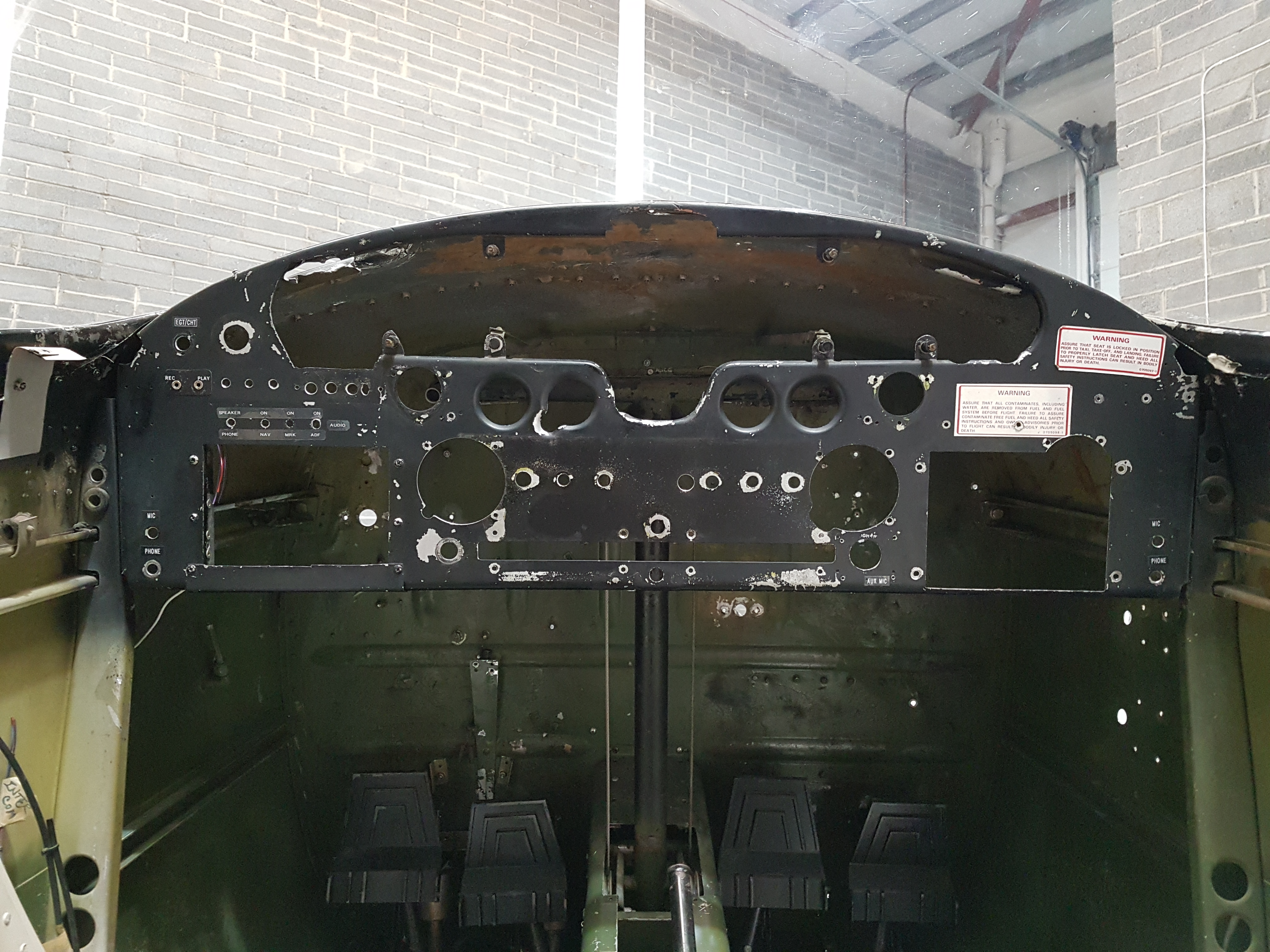

The panel is bare

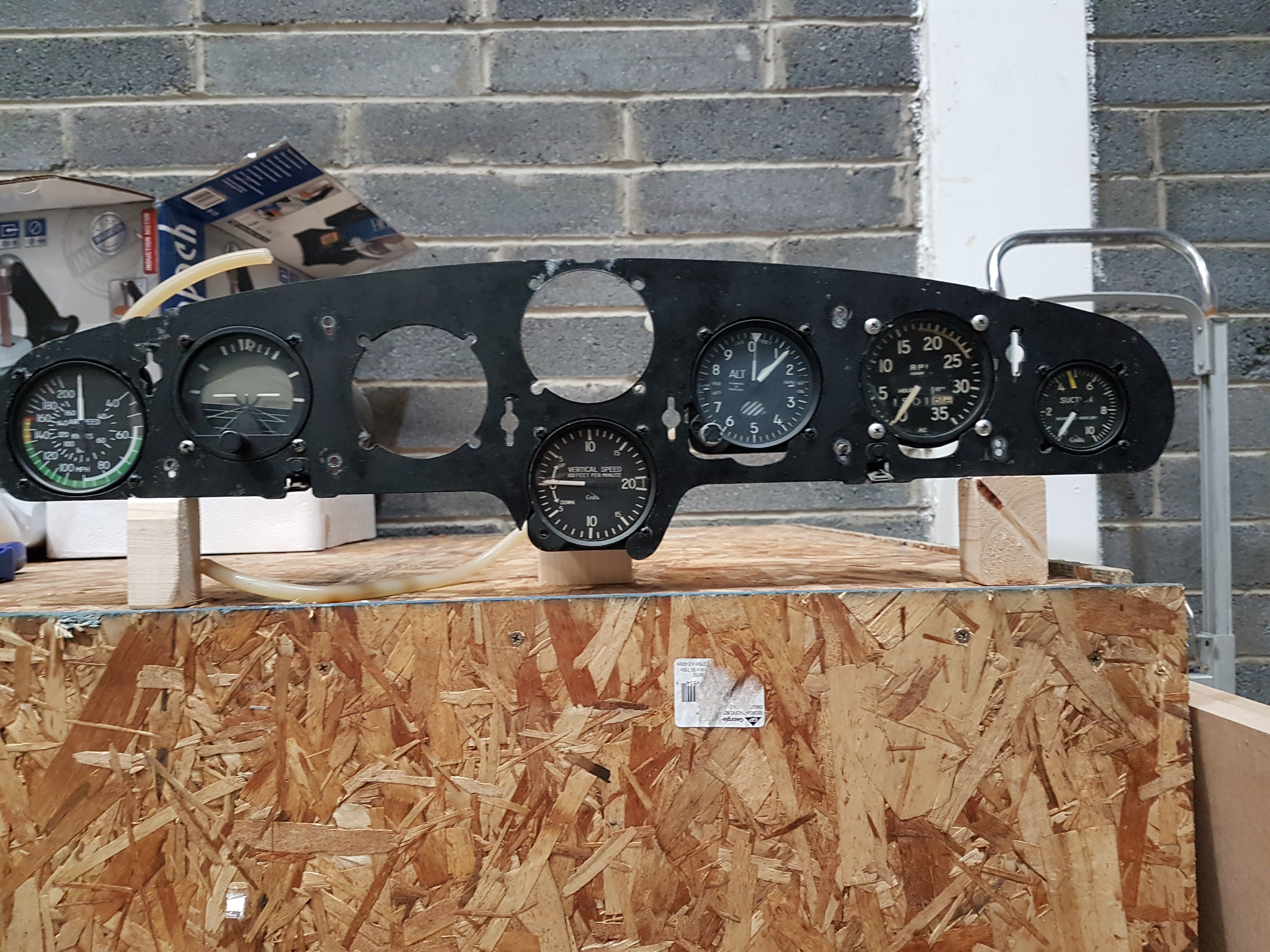

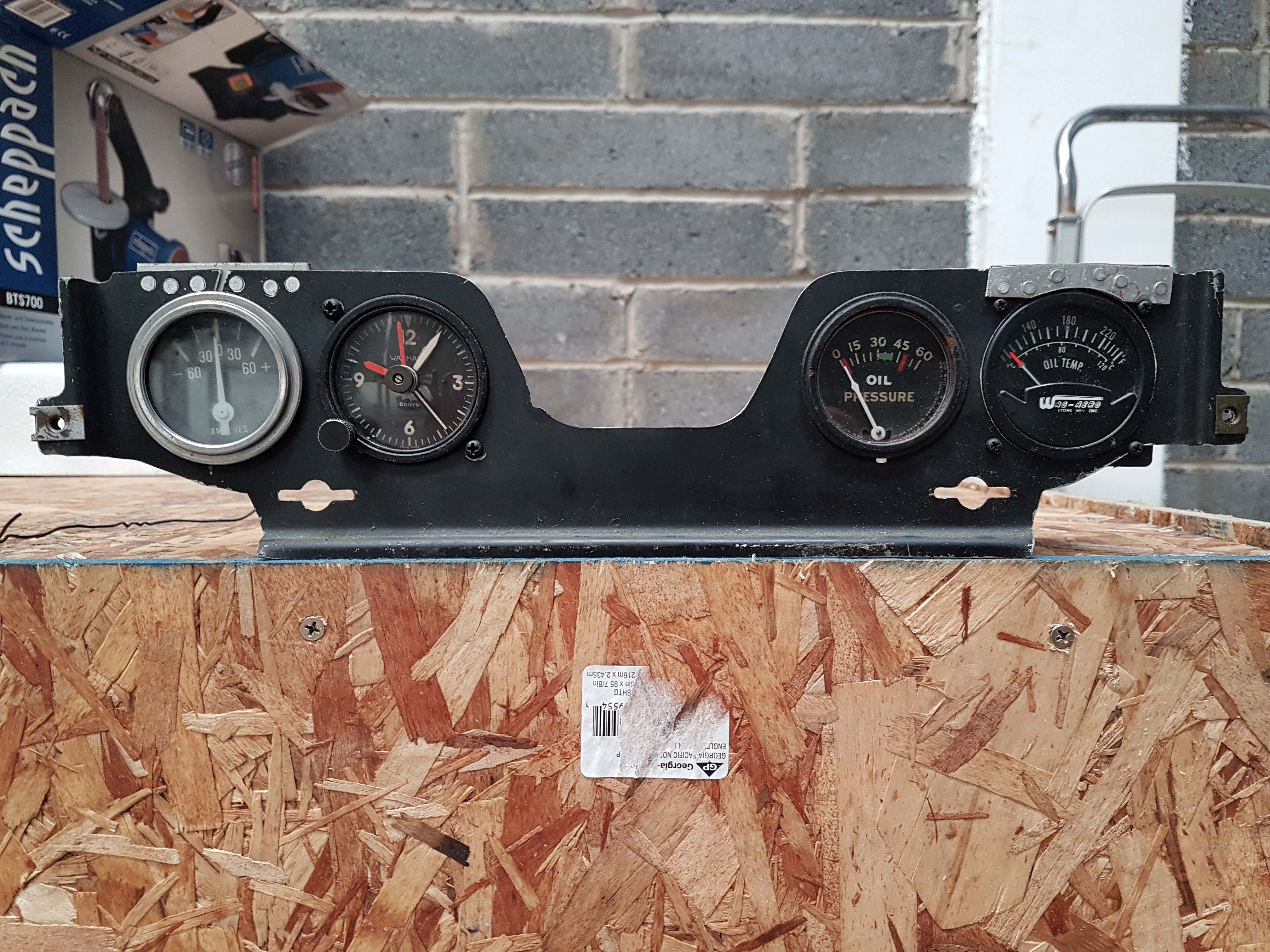

Everything is now out of the panel. Figured out how to get all the controls out of the panel and despite being aware of the ball bearing in the carb heat control, still managed to lose it. Oh well!

The suction system is removed and a secondary static line that wandered up the A-post and connected the altimeter only has been removed (and retained in case it turns out to be needed.)

I’m starting the CAD work for the new panel and the wiring diagram(s). Away all weekend and next week on familty vacation, bringing laptop to continue research and drawings.


Work Date: 16th August 2019
Hours: 6
Aircraft Section: Panel
